EWP Header-Adaptor Kit - Suit GM LS Series

EWP Header-Adaptor to suit GM III & IV SB engines is designed to:

• Replace belt-driven mechanical water pump
• Increase engine horsepower
• Provide superior engine cooling control
• Eliminate heat soak
• Do-it-yourself 'plug & play' installation using some existing OEM water pump hardware

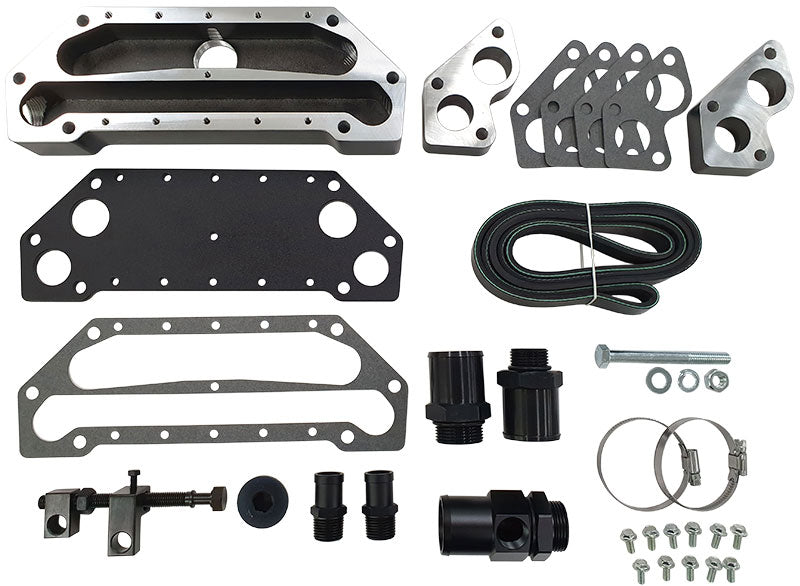

Header Adaptor Kit Components

1 - Adaptor Block
1 - Adaptor Back Plate
2 - Adaptor Spacer
1 - Plate Gasket
4 - Spacer Gasket
1 - Outlet -16AN to 38mm (1-1/2") Hose Fitting
1 - Inlet -12AN to 38mm (1-1/2") Hose Fitting
1 - Inlet Plug -12AN
2 - 1/2" NPT 19mm (3/8") Hose fitting
1 - Heater Return fitting
2 - Hose Clamps
1 - Screw-type Belt Tensioner
1 - 6PK1560 Belt
11 - M5 Flange Bolts
