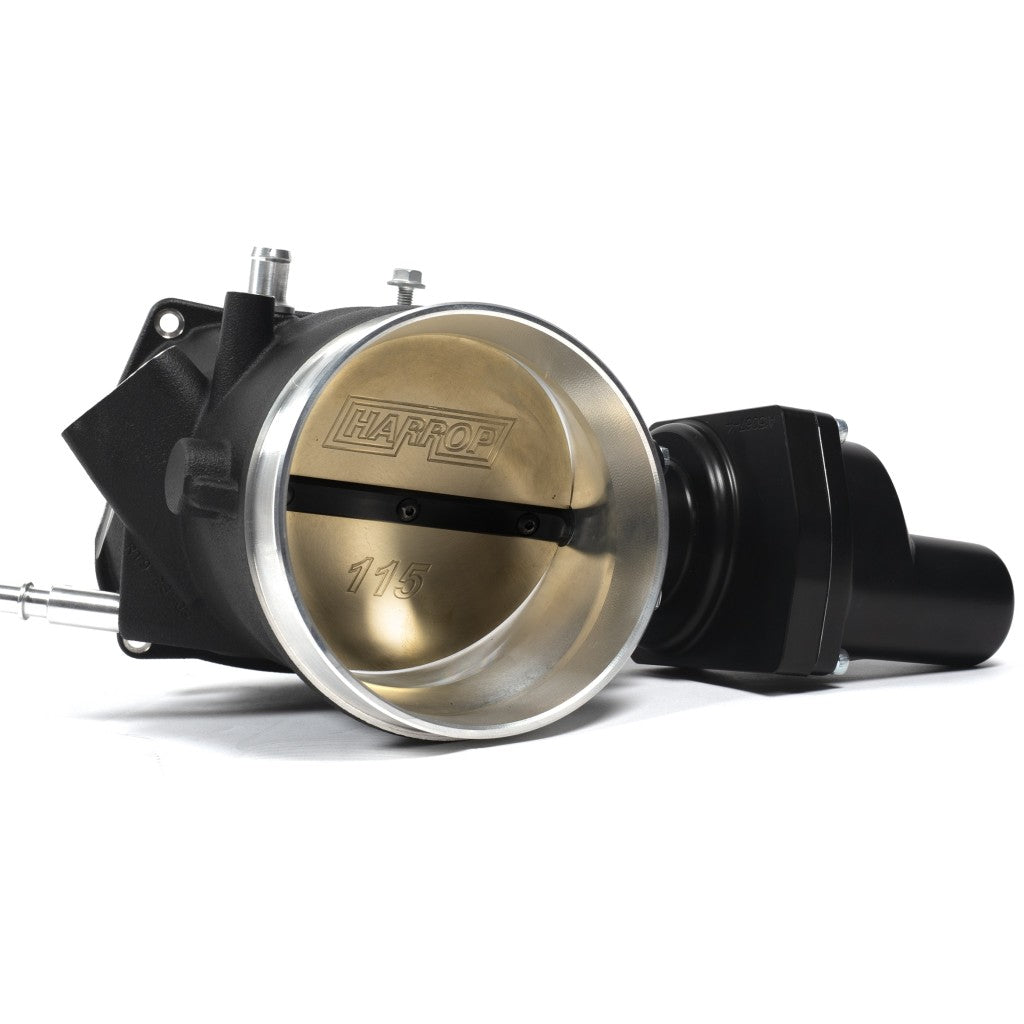

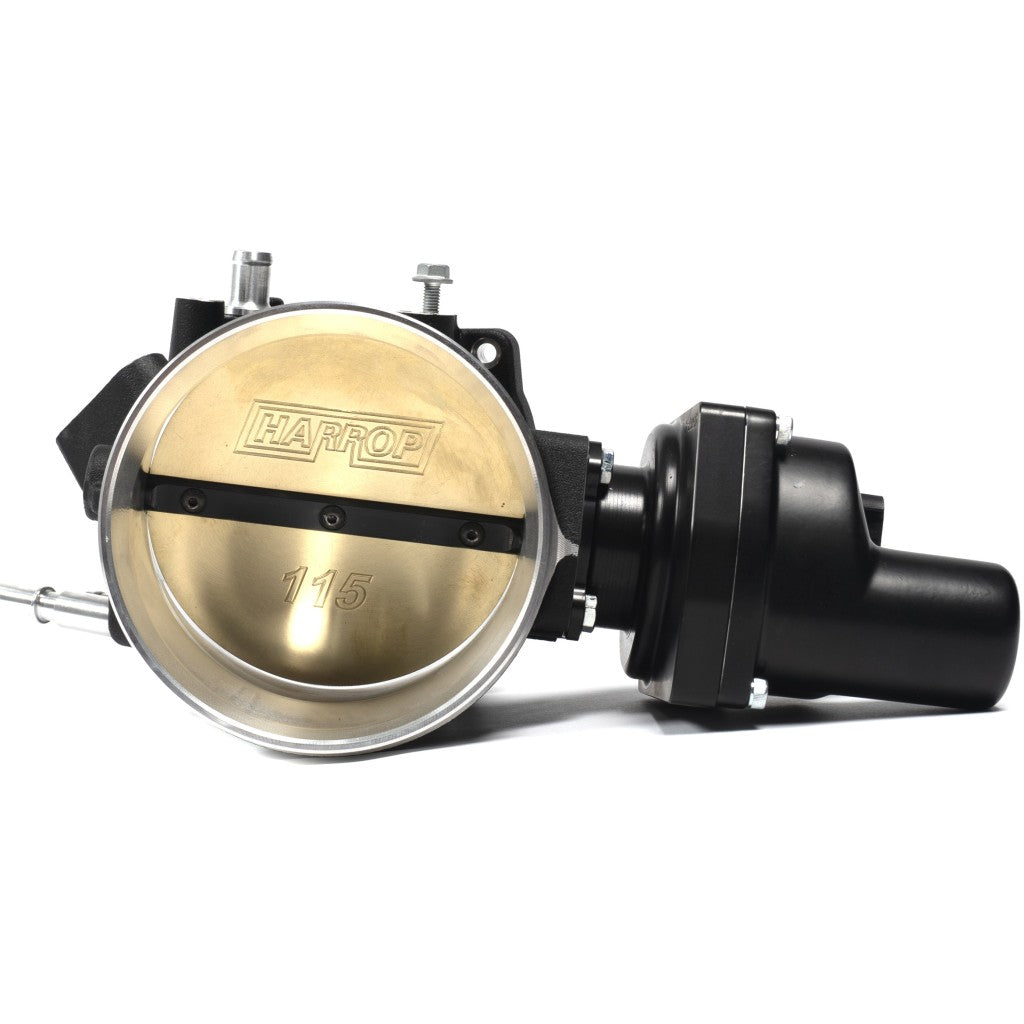

Harrop 115 Integrated Throttle Body LSA-H2650i

The 115mm Integrated Throttle Body is designed specifically for the LSA-H2650i Supercharger. Ideal for max effort combinations maximising inlet airflow and performance whilst retaining factory mounting points for the MAP sensor, fuel tank purge valve, brake booster outlet and all vacuum ports.

The 115mm Throttle Body is available in ETC and Cable drive configurations and requires a custom intake duct (5"/127mm OD) or our Carbon Edition LSA CAI.

Overview:

• Suits Harrop LSA-H2650i Supercharger
• Designed to maximise the air flow path to the Supercharger inlet, increasing the throttle opening diameter from Ø87mm stock up to Ø115mm
• Retains all factory mounting points for LSA inlet map sensor, fuel tank purge valve, brake booster outlet and all required vacuum ports
• Custom intake duct required (5"/127mm throttle body inlet OD) or Harrop Carbon Edition LSA Cold Air Intake to suit upgraded 115mm Throttle Body

• Maximum Supercharger pulley is Ø90mm
• Available in ETC and Cable configuration
• ECU Recalibration is required after installation
