Harrop TVS900 Suzuki Jimny JB74

TVS900 Suzuki Jimny JB74

Built to Order

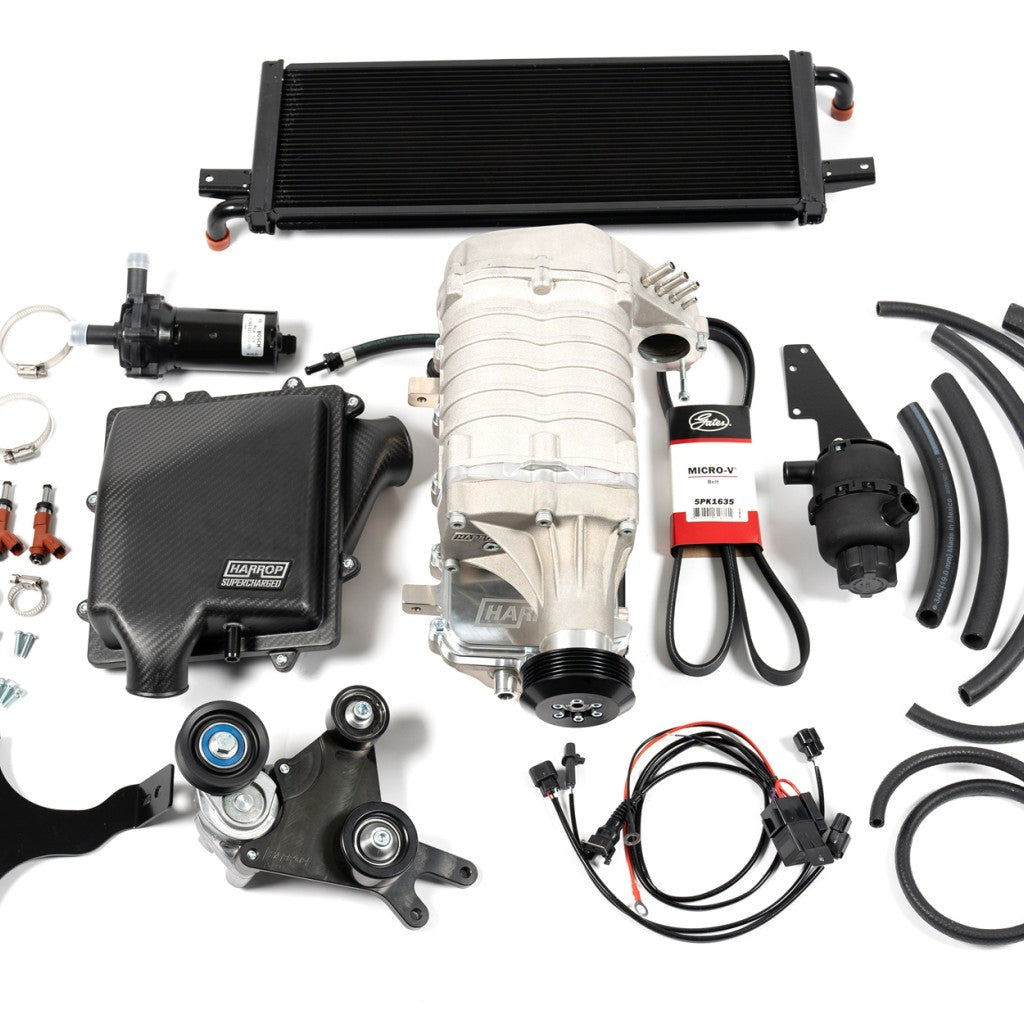

Designed and manufactured by Harrop Engineering to OE standards utilising Eaton TVS technology, the TVS900 Supercharger system is exclusively designed for the Suzuki Jimny JB74 1.5L inline 4 cylinder engine. The side mounted TVS900 Supercharger kit is water to air intercooled and produces over 50% increase in power and over 40% increase in torque, with considerable gains right throughout the rev range. This complete system requires no other modifications and retains and OEM plus level of appearance and operation.

The instantaneous boost response from the positive displacement Supercharger provides much needed torque from idle which is ideal for Jimny owners with additional weight from aftermarket accessories and larger tyres looking for increased performance.

Key Features:

• High efficiency TVS900 Supercharger
• Increased peak power by up to 59% and 42% peak torque
• OEM plus appearance and operation
• Bypass valve integrated for increased fuel efficiency at low engine loads
• Dual pass water to air intercooler core
• Custom carbon fibre 2-piece airbox utilises factory filter element
• 2.5" airbox inlet allows easily adaption to aftermarket snorkels
• 85mm Supercharger pulley achieves peak boost of over 9psi
• ECU removal, unlock & recalibration required*
• Vehicle retains all OEM body control functionality

* Calibration supplied is for factory drivetrain vehicles only. Vehicles that have modified drivetrain and/or oversized wheels/tyres will require custom calibration at additional cost.
